Extension and internal coating
WA-101

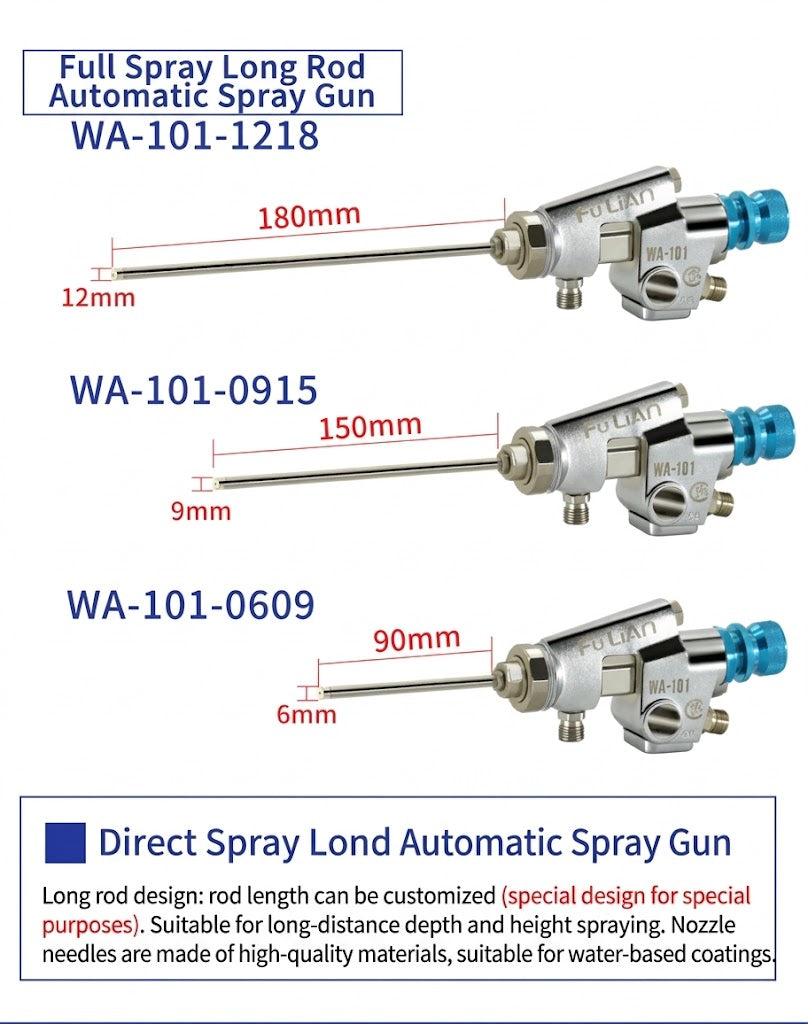

Fulian WA-101 Automatic Spray Gun for Internal Pipe Wall Coating
- Manufacturer
- Fulian
- Model
- WA-101
- Ordering
- Online order or bulk inquiry
Confirm coating compatibility and the exact configuration before ordering.
TECHNICAL INFORMATION
Product details.
Review the current supplier-listed configuration and confirm the package, coating compatibility and operating requirements before ordering.

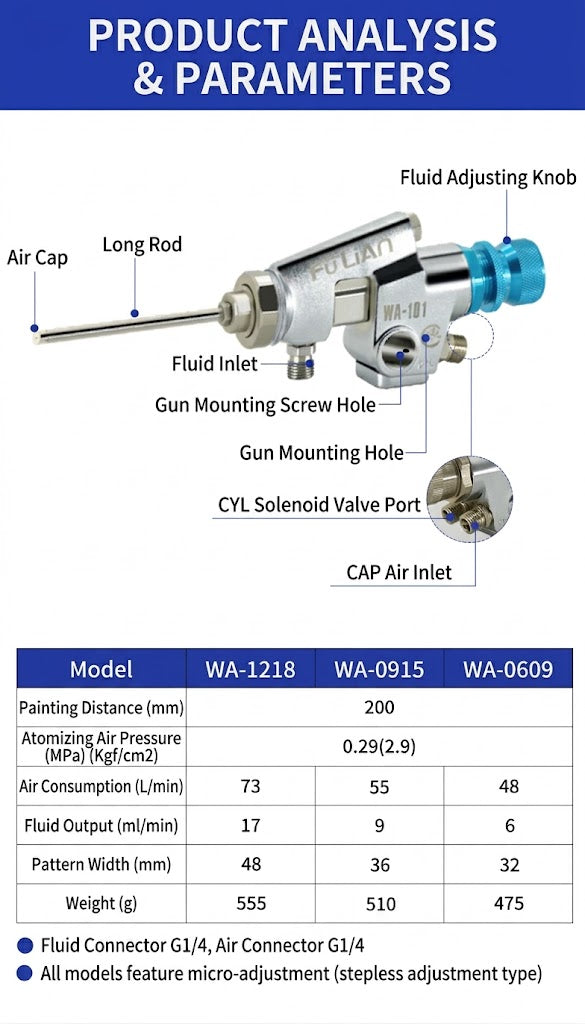

Technical Specifications Table
| Model | WA-1218 | WA-0915 | WA-0609 |
|
Spraying Distance (mm)
|
200
|
200
|
200
|
|
Atomizing Air Pressure (MPa) (kgf/cm²)
|
0.29 (2.9)
|
0.29 (2.9)
|
0.29 (2.9)
|
|
Air Consumption (L/min)
|
73
|
55
|
48
|
|
Paint Output (ml/min)
|
17
|
9
|
6
|
|
Pattern Width (mm)
|
48
|
36
|
32
|
|
Weight (g)
|
555
|
510
|
475
|
Additional Specifications
-

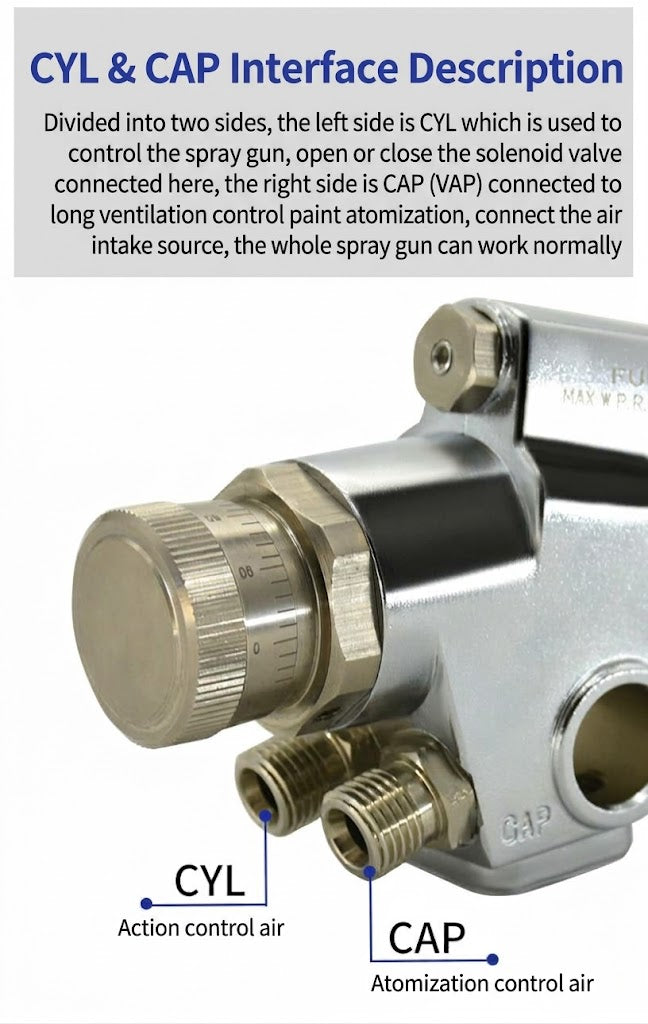

Fluid Nipple: G1/4 | Air Nipple: G1/4
-

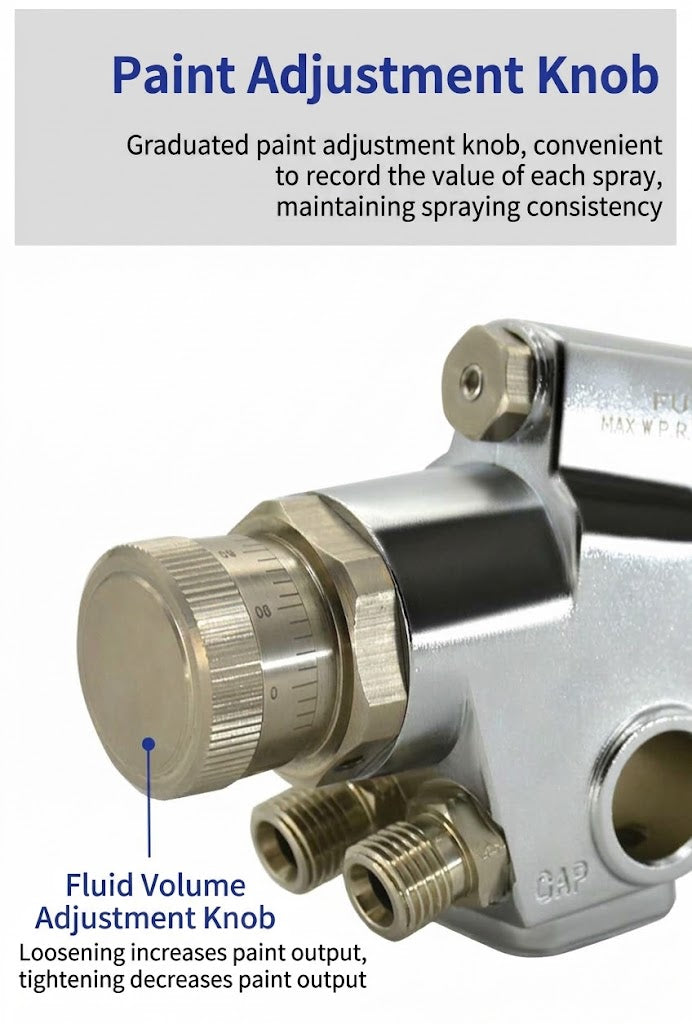

Adjustment Type: All models feature stepless micro-adjustment.
Available configurations.
Source configuration labels are preserved. Confirm the selected option with your inquiry.
| Configuration | SKU / reference | Unit price |
|---|---|---|
| Full Spray WA-101 Automatic Spray Gun 0609 | 669074197504-1 | USD 219.00 |
| Full Spray WA-101 Automatic Spray Gun 0915 | 669074197504-2 | USD 219.00 |
| Full Spray WA-101 Automatic Spray Gun 1218 | 669074197504-3 | USD 219.00 |
| Direct Spray WA-101 Automatic Spray Gun 0609 | 669074197504-4 | USD 219.00 |
| Direct Spray WA-101 Automatic Spray Gun 0915 | 669074197504-5 | USD 219.00 |
| Direct Spray WA-101 Automatic Spray Gun 1218 | 669074197504-6 | USD 219.00 |
| Flat Angle WA-101 Automatic Spray Gun 0609 | 669074197504-7 | USD 219.00 |
| Flat Angle WA-101 Automatic Spray Gun 0915 | 669074197504-8 | USD 219.00 |
| Flat Angle WA-101 Automatic Spray Gun 1218 | 669074197504-9 | USD 219.00 |
| Full Spray WA-101 Single Rod 0609 | 669074197504-10 | USD 101.30 |
| Full Spray WA-101 Single Rod 0915 | 669074197504-11 | USD 101.30 |
| Full Spray WA-101 Single Rod 1218 | 669074197504-12 | USD 101.30 |
| Direct Spray WA-101 Single Rod 0609 | 669074197504-13 | USD 101.30 |
| Direct Spray WA-101 Single Rod 0915 | 669074197504-14 | USD 101.30 |
| Direct Spray WA-101 Single Rod 1218 | 669074197504-15 | USD 101.30 |
| Flat Angle WA-101 Single Rod 0609 | 669074197504-16 | USD 101.30 |
| Flat Angle WA-101 Single Rod 0915 | 669074197504-17 | USD 101.30 |
| Flat Angle WA-101 Single Rod 1218 | 669074197504-18 | USD 101.30 |
